Komatsu 931XC

Low ground pressure and great stability – regardless of the terrain

Komatsu 931XC

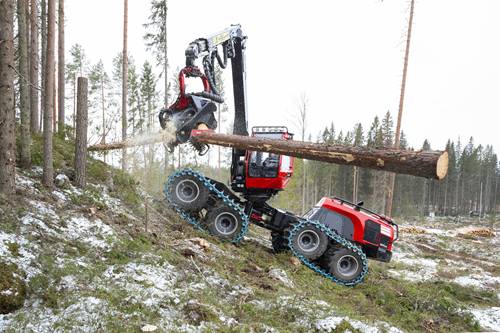

An effective and versatile harvester for anyone working in steep, rugged terrain. The eight-wheel design offers additional stability as well as lower ground pressure, leaving less of a mark on soft ground.

Download brochure

Weight ( appr.)

From 21 900 kg

Gross lifting torque

230 kNm

Power

190 kW DIN at 1,850 rpm

Tractive force

200 kN

Features

Tailored to your working day

– Choose between three crane lengths: 8.7/10/11 m

– Several productive heads to choose between, for everything from late thinning to final logging.
Komatsu 931

Ideal for combined assignments

Our versatile machines are flexible all-rounders suitable for anyone who works with both late thinning and lighter final logging.

The agile yet robust design and 230H crane make this harvester incredibly strong even at long reaches. This particular crane is also suitable for heads with multi-tree handling.

The 26.5" wheels pass obstacles in the terrain extremely easily while also being ideal for snowy ground.

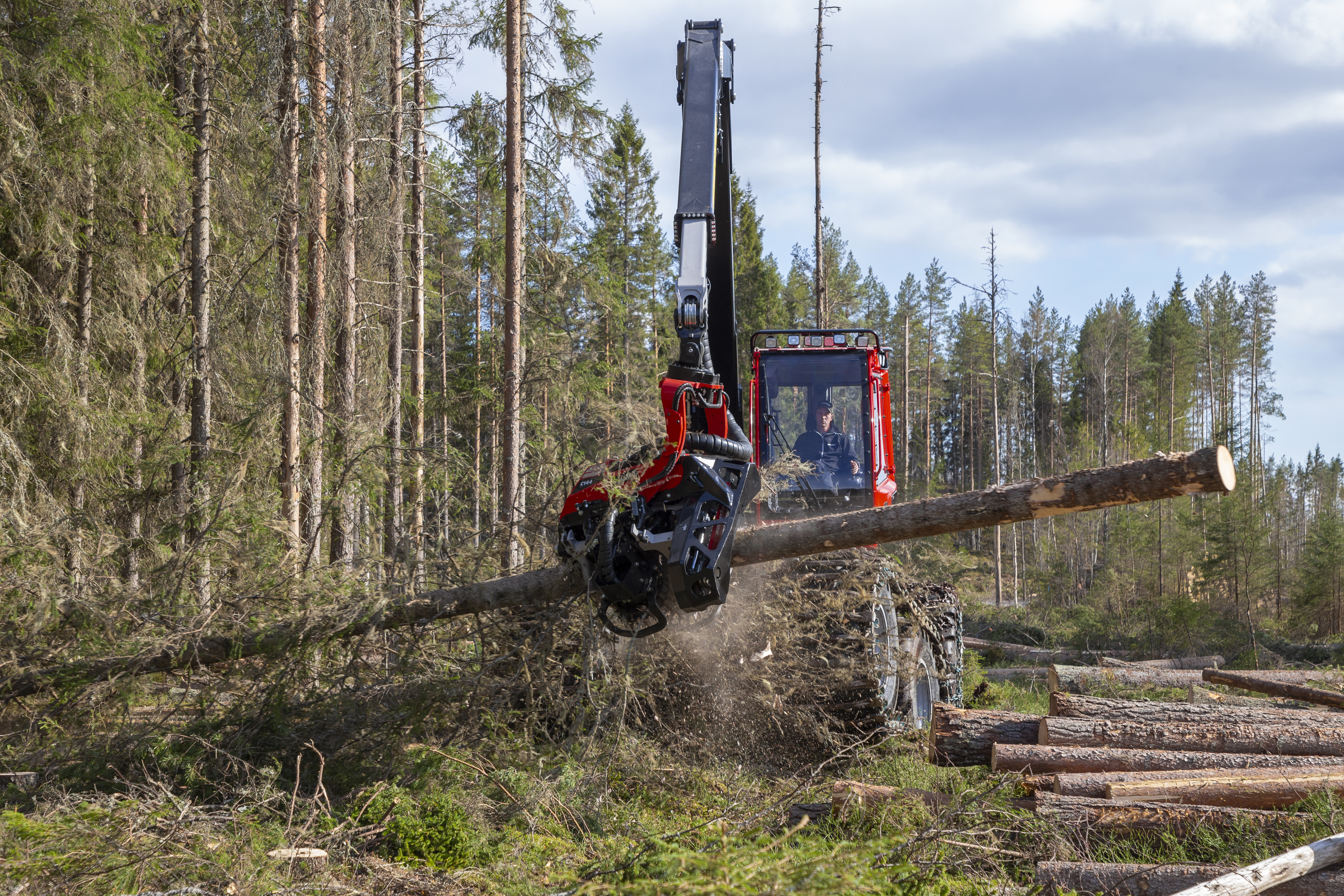

Komatsu 951

Working hydraulics you can depend on

3PS is our innovative hydraulic system that ensures you have the capacity to perform several operations at once – with maximum hydraulic power. For example, you can slew the crane, feed a log and manoeuvre the machine at the same time. If, instead, you are performing tasks that require less power, only parts of the system are used, meaning lower energy losses and thereby lower fuel consumption. An innovation that is good for your wallet, quite simply!

While 3PS is available on all our harvesters, it is particularly useful for final logging as you can perform several operations at the same time.

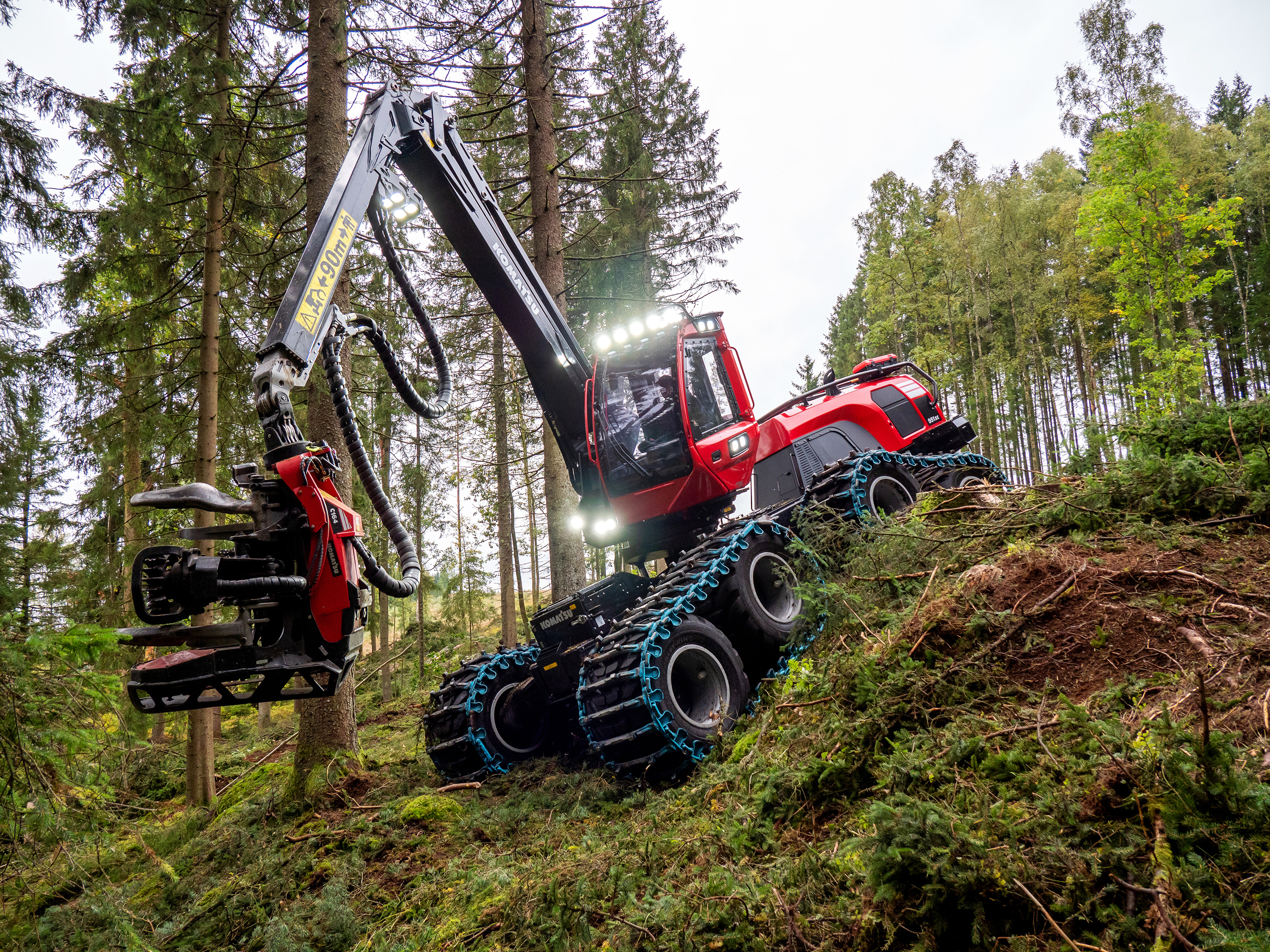

Komatsu 951XC

Low ground pressure and high stability

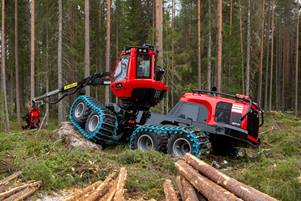

The XC machines are specially developed for logging in hilly terrain and on soft ground. Thanks to the 8-wheel design, our machines have a lower ground pressure, which makes them more gentle on the ground.

A factor that's also important when operating in demanding conditions is stability. Thanks to the Komatsu-concept, our harvesters have a design that contributes to making them among the most stable harvesters on the market. The XC machines take this one step further, with a double oscillating bogie on the rear frame, which makes sure the machine follows irregularities in the terrain in a smooth and forgiving manner while delivering excellent manoeuvrability in challenging terrain conditions.
More harvester benefits

Some of our harvester options

The right head for every assignment

The choice of head always begins with the conditions faced in the forest. There are all kinds of trees, each of which poses different challenges requiring specialist solutions.

Our broad offering encompasses heads specially designed for particular types of forest and suitable for everything from initial thinning to final logging of the largest trees.

For the 931XC, you can choose between the following heads:
S92, C93, C124, S132, C144, 370E, S162E

Komatsu 901

Give your cab a finishing touch

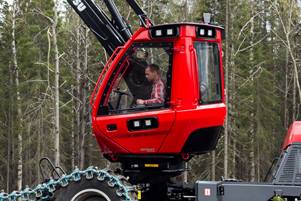

The harvester cab has an ergonomic design with many added conveniences to help ensure job satisfaction. It can also be complemented with a wide range of extra equipment, should you want to tailor your workplace to suit your personal preferences. You can see a few of these options below, with more to be found in the brochure.
– Sequence control for both EME and mini joysticks
– Interior floor lighting and reading lamp on flexible arm
– Radio with Bluetooth and hands-free support
– Food box heater
– Cooler
– Sun shades
– Removable floor mat

By the way, did you know that the storage space in the panel behind the driver's seat can be used to cool bottles of drink? Ideal for keeping cool on hot days.

Smart Crane Harvesters

Crane operation at its easiest

For a harvester operator, an easily operated crane is important for ensuring a productive working day. With Komatsu Smart Crane, the crane – from the main boom all the way to the tip of the telescopic arm – is controlled with a single, smooth lever movement.

Thanks to the crane’s precision and responsiveness, the operator can easily steer the head where they want it, contributing to a more relaxed way of working. A relaxed operator can keep up a high and steady production during the day and still feel more refreshed at the end of the working day. Advantages that will be seen in both profitability and the operator’s well-being.

Download brochure
MaxiFleet

Leave nothing to chance

Smart Forestry gives you access to a collection of digital services that help make the workplace safe, smart, productive and sustainable - whether you have one or a hundred forest machines. You can keep track of your machines, collaborate with colleagues, and make wise decisions based on facts.

Smart Forestry consists of three different applications, making it easy for you to find the one that suits you and your business.

More About Smart Forestry
MaxiFleet Precision mindre

Smart Forestry Precision

Smart Forestry Precision uses the latest technology in satellite positioning to determine the machine’s position with an error margin of just a few centimetres. This paves the way for productive and smart work methods where the operator is provided with key information and support to enable informed decisions.

There are several useful functions within Precision, like the ability to create exact, digital fences to mark the borders of a work area or around protected areas. It's also easier to classify stems based on environmental considerations with the stem code visualisation tool.

Specifications

931XC

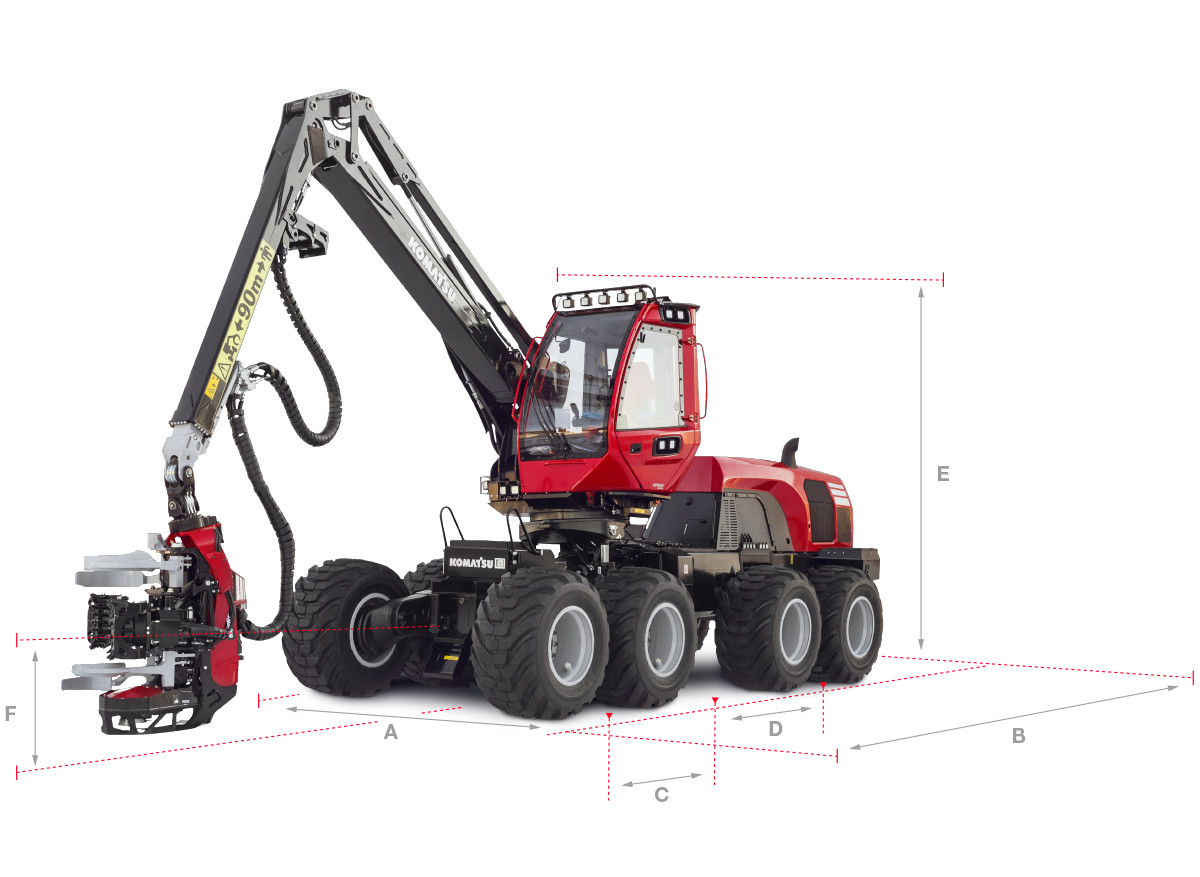

Overview

A. Width

With 600/55x26.5 tyres: 2 776 mm

B. Length, total

8 015 mm

C. Length, front axle to middle joint

1 930 mm

D. Length, middle joint to rear axle

2 150 mm

E. Transport height

3975 mm (13') to top of roof, straight cab. 3930 mm (12'11") backwards tilted cab with tilted light ramp. Both measurements with tyre compressions.

F. Ground clearance at steering joint

705 mm

Note

Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

Approximate weight

from 21 900 kg

Type

AGCO POWER,6-cylinder diesel engine with turbo and intercooler. Stage II.

Stroke volume

7.4 L

Power

190 kW DIN at 1 850 r/min

Torque

1130 Nm vid 1 500 r/min

Fuel tank

Approx 480 L

Model and reach

230H: 8.7 m, 10 m, 11 m

Gross lifting torque

230 kNm

Gross slewing torque

54 kNm

Available heads

S92, C93, C124, S132, C144

Flow

528 l/min at 1,600 rpm

System pressure

280 bar (4,061 psi)

Voltage

24 V

Battery capacity

2 x 180 Ah

Generator

2 x 100 A

Driving speed

0-20 km/h

Tractive force

200 kN

General information

The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

Product video 931XC

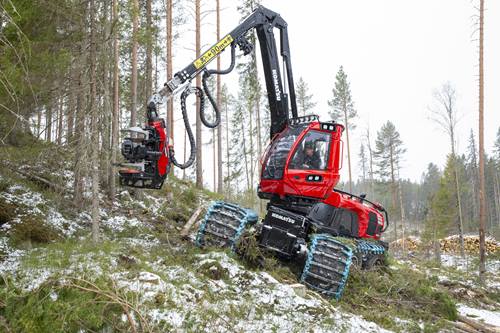

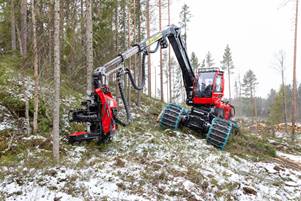

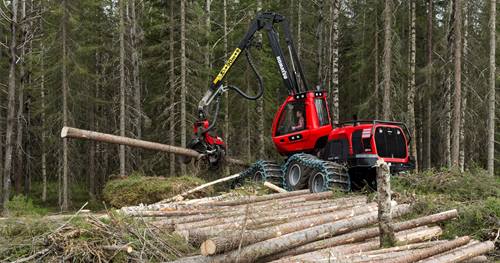

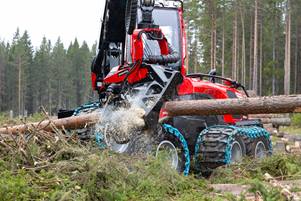

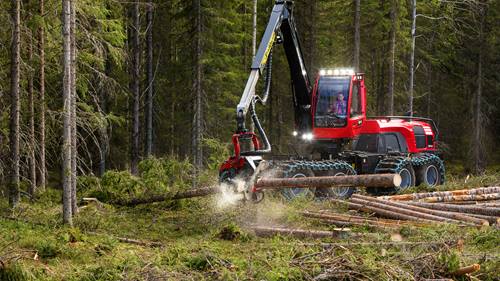

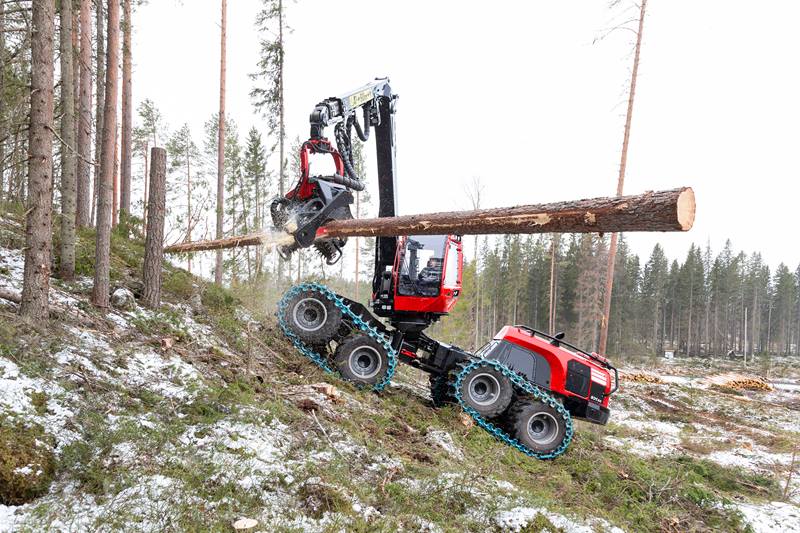

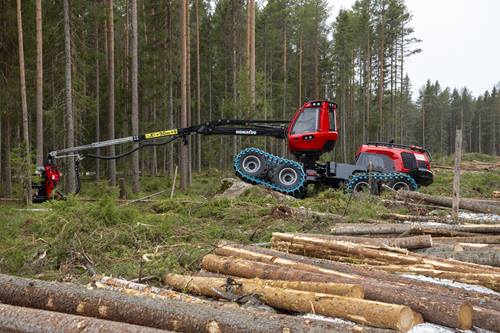

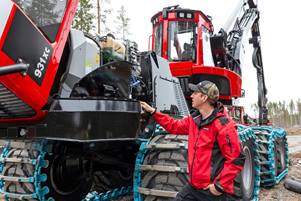

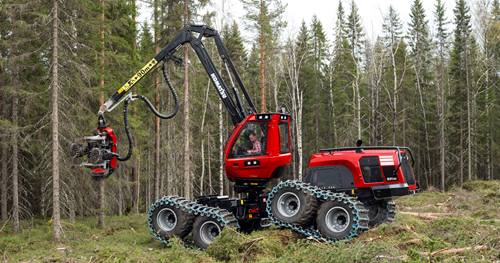

Gallery
