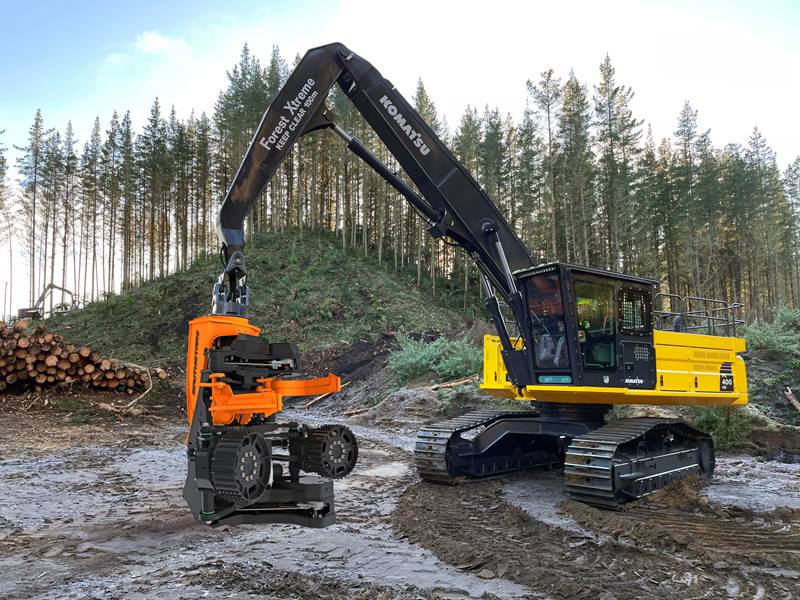

Komatsu PC400HD-8
Xtreme Carrier designed for Heavy Forestry Attachments
Komatsu PC400HD-8

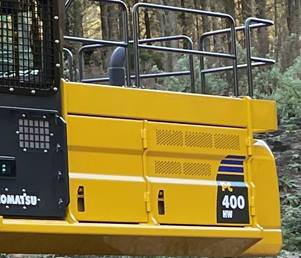

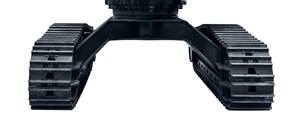

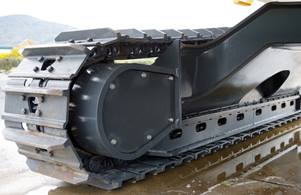

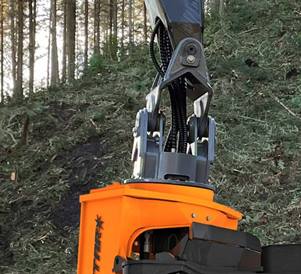

The Komatsu PC400HD-8 Xtreme Heavy Duty Attachment Carrier comes with the Komatsu/EMS High Wide Undercarriage fitted with 700mm Double Bar Grousers and Track Guards. Included is a Heavy-Duty Cooling System with a Heavy-Duty Guarding package. The EMS modified Forest Boom set can carry any harvester, fixed or directional felling head.
Base Machine
Operating Weight
44,000 kg
Engine
Horsepower
Gross 270kW (362hp) @ 1900 rpm
Swing
Torque
131,547 Nm
Work Equipment
Booms & Arms
EMS Boom Set
Specifications
PC400HD-8
Overview

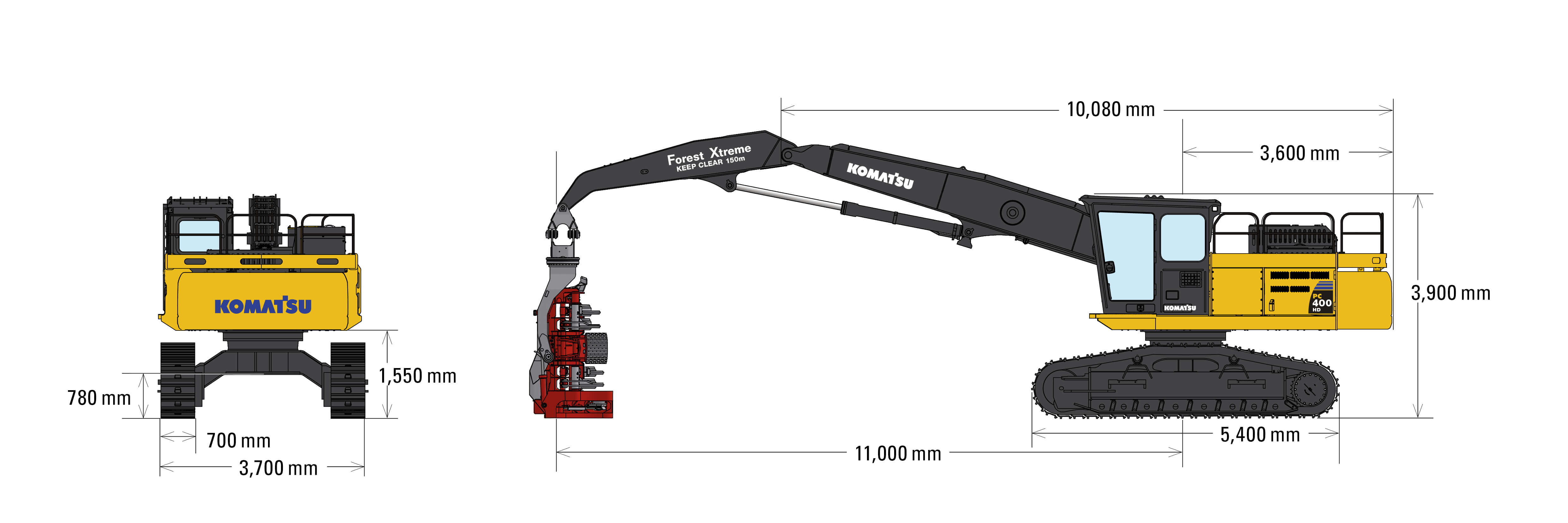

Dimensions
Minimum width
3 700 mm
Height cabin
3 900 mm
Road clearance
780 mm
Operating weight
General information
44 000 kg
Drive and brake system
Steering control
Two levers with pedals
Drive method
Hydrostatic
Maximum drawbar pull
330 kN
Gradeability
70%, 35°
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Parking brake
Mechanical disc brake
Engine
Fuel tank
650 ltr
Model
Komatsu SAA6D125E-5
Power
Gross 270 kW
Type
Water-cooled, 4-cycle, direct injection
Aspiration
Turbocharged, aftercooled
No of cylinders
6
Piston displacement
11.04 L
Horsepower
362 HP
Transmission and brakes
Travel motors
2x axial piston motor with parking brake
Swing motor
1x axial piston motor with swing holding brake
Parking brake
Mechanical disc brake
Hydraulic system
General information
HydrauMind
Max flow rate
690 L/min
No of working modes
4
Main pump type
Variable displacement piston type
Main pump: Pumps for
Boom, arm, attachment, swing, and travel circuits
Main pump: Maximum flow
690 L/min
Under carriage
Center frame
X-frame
Track frame
Box-section
Brake system
Parking brake
Mechanical disc brake
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Coolant and lubricant capacity
Fuel Tank
650 ltr
Radiator
36.0 ltr
Engine
37.0 ltr
Final drive
10.5 ltr
Swing drive
20.0 ltr
Hydraulic tank
248 ltr
