Komatsu PC270LL-8
Xtreme Carrier designed for Log Loader Attachments

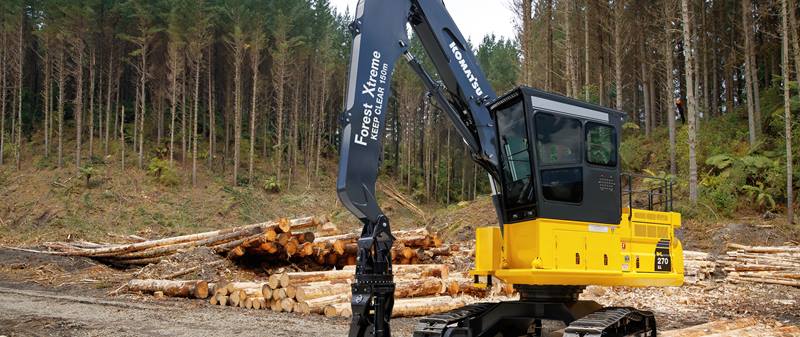

Komatsu PC270LL-8

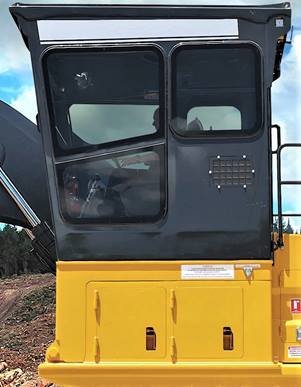

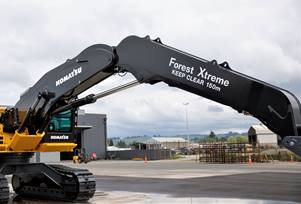

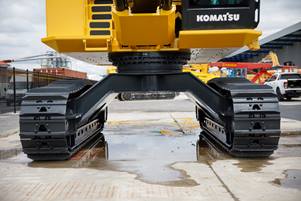

The Komatsu PC270LL-8 is the smallest of the Log Loading Xtreme Carriers and is fitted with the Osaka factory High Wide Undercarriage. The high-rise rear entry cabin provides excellent operational visibility and in combination with the Working Gear Forest Boom set which can accommodate most styles of loading grapples for a medium range of timber sizes.
Base Machine
Operating Weight
Log Loader 33,000 kg
Engine
Horsepower
Gross 149kW (200hp) @ 2000rpm
Work Equipment
Booms & Arms
Komatsu WG Boom Set
Swing
Torque
87 168 Nm
Specifications
PC270LL-8
Overview

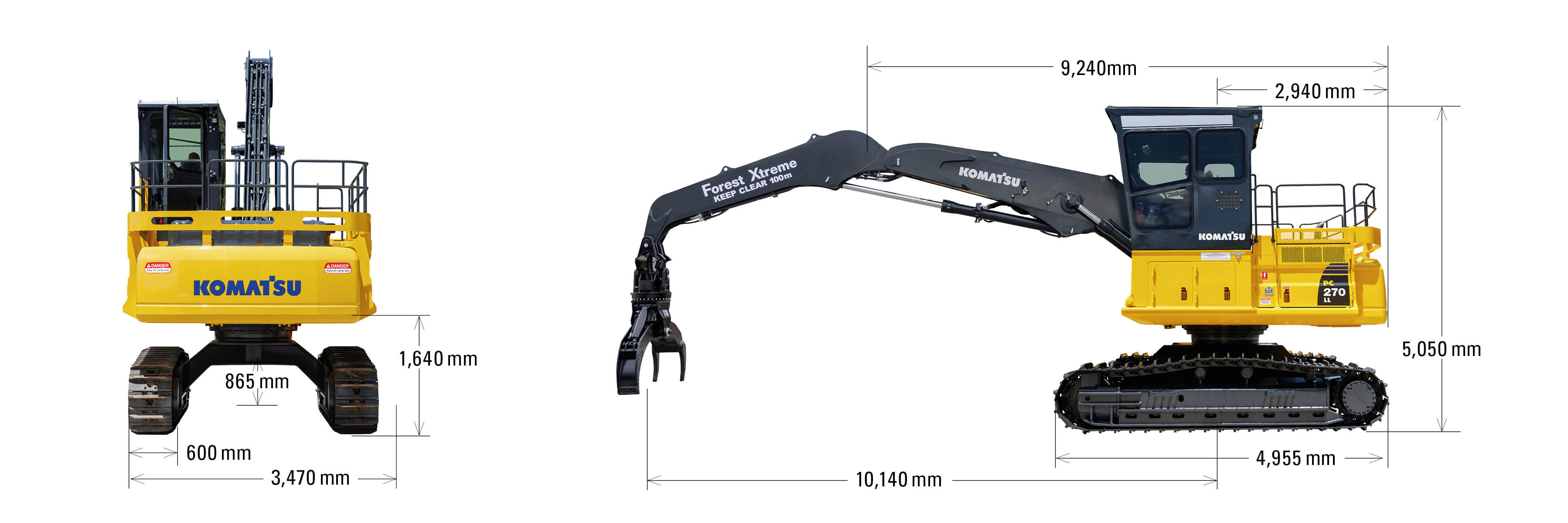

Dimensions
Minimum width
3 470 mm
Length carrier vehicle
9 240 mm
Road clearance
865 mm
Operating weight
General information
33 000 kg
Drive and brake system
Steering control
Tow levers with pedals
Drive method
Hydrostatic
Maximum drawbar pull
264 kN
Gradeability
70%, 35 degrees
Maximum travel speed
4.5 km/h
Service brake
Hydraulic lock
Parking brake
Mechanical disk brake
Engine
Fuel tank
400 ltr
Model
Komatsu SAA6D107E-1
Power
Gross 149 kW
Type
Water-cooled, 4-cycle, direct injection
Aspiration
Turbocharged, aftercooled
No of cylinders
6
Transmission and brakes
Travel motors
2 x Axial piston motors
Swing motor
1 x Axial piston motor
Parking brake
Mechanical disk brake
Hydraulic system
General information
HydrauMind
Max flow rate
450 ltr/min
No of working modes
4
Main pump type
Variable displacement piston type
Main pump: Pumps for
Boom, arm, attachment, swing and travel circuit
Main pump: Maximum flow
450 ltr/min
Under carriage
Center frame
X-frame
Track frame
Box-section
Brake system
Parking brake
Mechanical disc brake
Maximum travel speed
4.5 km/h
Service brake
Hydraulic lock
Coolant and lubricant capacity
Fuel Tank
400 ltr
Radiator
20.6 ltr
Engine
23.1 ltr
Final drive
8.5 ltr
Swing drive
8.2 ltr
Hydraulic tank
132 ltr
