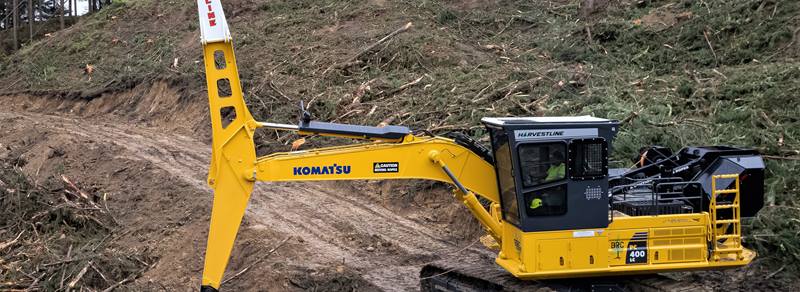

Komatsu PC400HL-8
Xtreme Carrier designed for Harvestline
Komatsu PC400HL-8

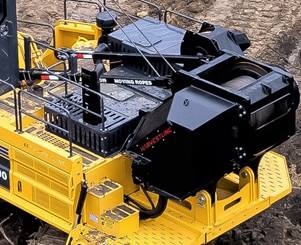

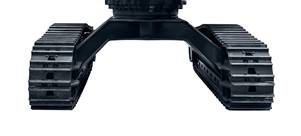

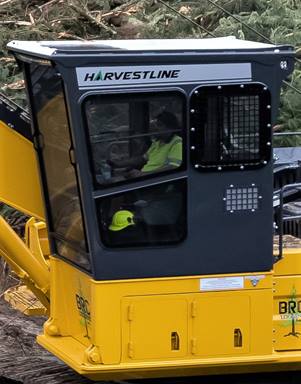

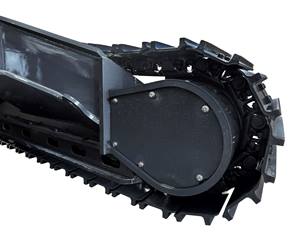

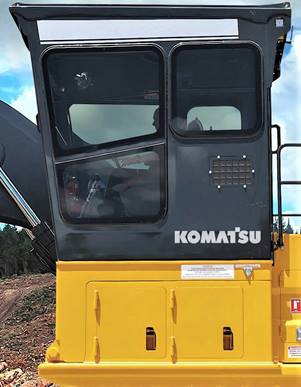

The Komatsu PC400HL-8 Xtreme base comes standard with the Osaka factory High Wide Undercarriage fitted with 700mm Double Bar Grousers and Track Guards. The machine is fitted with an EMS Harvestline System. This Dual Winch system features an interlock operation providing greater flexibility for higher productive. The machine is equipped with an EMS certified rear entry forestry cabin.
Base Machine
Operating Weight
Harvestline 48 000 kg
Engine
Horsepower
Gross 270 kW (362hp) @ 1900 rpm
Work Equipment
Booms & Arms
EMS Harvestline Boom Set
Swing
Torqure
131 547 Nm
Specifications
PC400HL-8
Overview

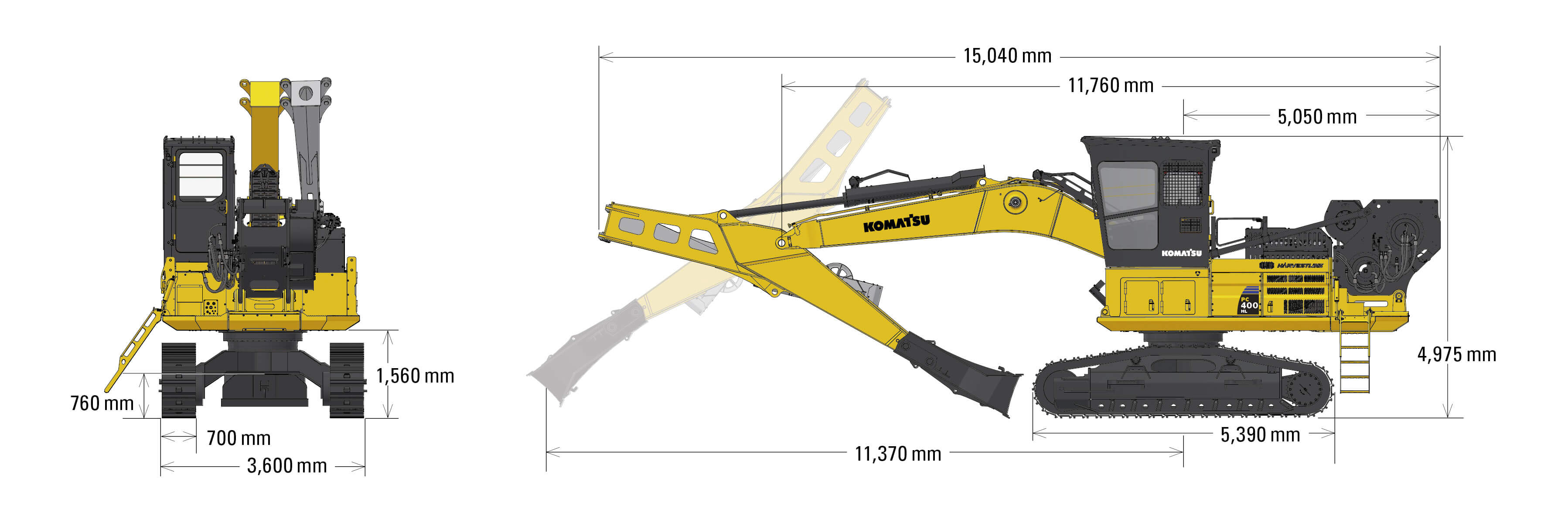

Dimensions
Minimum width
3 600 mm
Height cabin
4 975 mm
Road clearance
760 mm
Operating weight
General information
48 000 kg
Drive and brake system
Steering control
Tow levers with pedals
Drive method
Hydrostatic
Maximum drawbar pull
330 kN
Gradeability
70%, 35 degrees
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Parking brake
Mechanical disk brake
Engine
Fuel tank
650 ltr
Model
Komatsu SAA6D125E-5
Power
Gross 270 kW
Type
Water-cooled, 4-cycle, direct injection
Aspiration
Turbocharged, aftercooled
No of cylinders
6
Bore
125 mm
Stroke
150 mm
Piston displacement
11.04 ltr
Horsepower
Gross 270 kW
Transmission and brakes
Travel motors
2 x axial piston motors with parking brake
Swing motor
1 x axial piston motor with swing holding brake
Parking brake
Mechanical disc brake
Hydraulic system
General information
HydrauMind
Max flow rate
690 ltr/min
No of working modes
4
Main pump type
Variable displacement piston type
Main pump: Pumps for
Boom, arm, attachment, swing, and travel circuits
Main pump: Maximum flow
690 ltr/min
Under carriage
Center frame
X-frame
Track frame
Box-section
Brake system
Parking brake
Mechanical disc brake
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Coolant and lubricant capacity
Fuel Tank
650 ltr
Radiator
36.0 ltr
Engine
37.0 ltr
Final drive
10.5 ltr
Swing drive
20.0 ltr
Hydraulic tank
248 ltr
