Komatsu PC300HW-8
Xtreme Carrier designed for Forestry Attachments.
Komatsu PC300HW-8

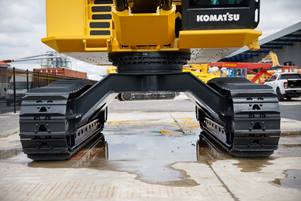

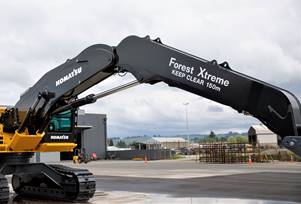

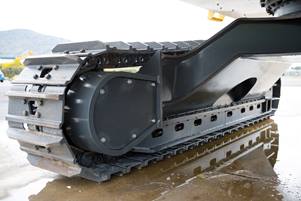

The Komatsu PC300HW-8 Xtreme Attachment Carrier comes with the Osaka factory High Wide Undercarriage fitted with 600mm Single and Double Bar Grousers and Track Guards. The Working Gear Forest Boom set are designed for Forestry Attachments such as processors and directional felling heads providing a universal machine for all applications.
Base machine
Operating Weight
Processor/Harvester 38 500 kg
Engine
Horsepower
Gross 194kW (200hp) @ 1950rpm
Work Equipment
Booms & Arms
Komatsu WG Boom Set
Swing
Torque
111 601 Nm
Specifications
PC300HW-8
Overview

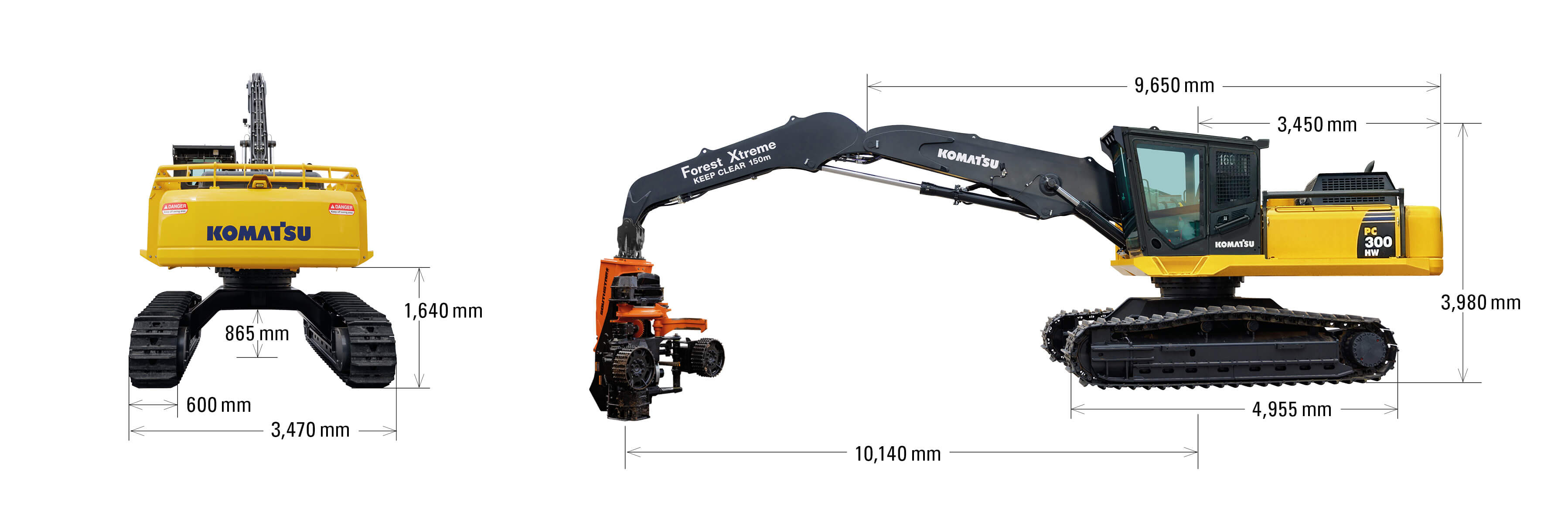

Dimensions
Minimum width
3 470 mm
Height cabin
3 980 mm
Road clearance
865 mm
Operating weight
General information
38 500 kg
Drive and brake system
Steering control
Tow levers with pedals
Drive method
Hydrostatic
Maximum drawbar pull
264 kN
Gradeability
70%, 35 degrees
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Parking brake
Mechanical disk brake
Engine
Fuel tank
605 ltr
Model
Komatsu SAA6D114E-3
Power
194 kW
Type
Water-cooled, 4-cycle, direct injection
Aspiration
Turbocharged, aftercooled
No of cylinders
6
Piston displacement
8.27 L
Horsepower
Gross 194 kW
Transmission and brakes
Travel motors
2 x axial piston motor with parking brake
Swing motor
1 x axial piston motor with swing holding brake
Parking brake
Mechanical disk brake
Hydraulic system
General information
HydrauMind
Max flow rate
535 ltr/min
No of working modes
4
Main pump type
Two-variable displacement piston type
Main pump: Pumps for
Boom, arm, attachment, swing and travel circuit
Main pump: Maximum flow
535 ltr/min
Under carriage
Center frame
X-frame
Track frame
Box-section
Brake system
Parking brake
Mechanical disc brake
Maximum travel speed
5.5 km/h
Service brake
Hydraulic lock
Coolant and lubricant capacity
Fuel Tank
605 ltr
Radiator
31 ltr
Engine
37 ltr
Final drive
9 ltr
Swing drive
16.5 ltr
Hydraulic tank
188 ltr
